THE AWARD WINNING BALLAST DESIGN FROM GALLAGHER STAGING IS NOW AVAILABLE AT THIS IS IT! STAGEWORKS.



THE G-BLOCK

INNOVATIVE BALLAST DESIGN USED FOR TRUSS GRIDS, TRUSS ARCHES, AND DEAD WEIGHT

  • Weighs 3500 lbs.
  • 36" wide x 36" deep x 36" tall
  • Powder Coated Black
  • Bolt pattern for 12" x 12" box truss (5 sides)
  • Bolt pattern for 20.5" x 20.5" box truss (5 sides)
  • Forklift accessible (2 sides)
  • Receives screw jacks to level
  • Fully enclosed in steel
  • Cement filled
  • Concrete will not chip off or alter ballast integrity
  • Bolt truss in (4) horizontal directions to create outriggers
  • Bolt truss vertically for tower truss

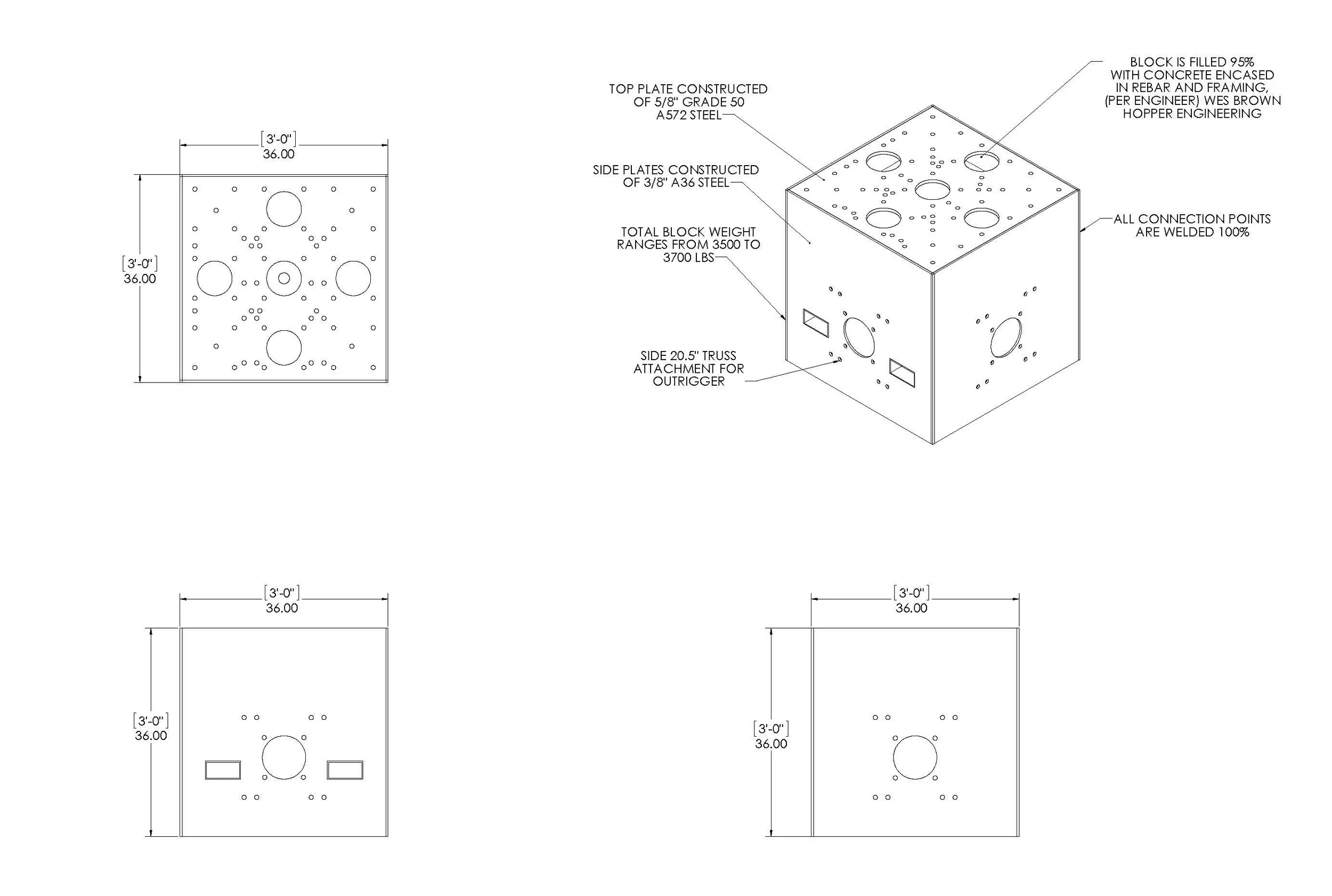

G-Block Overview

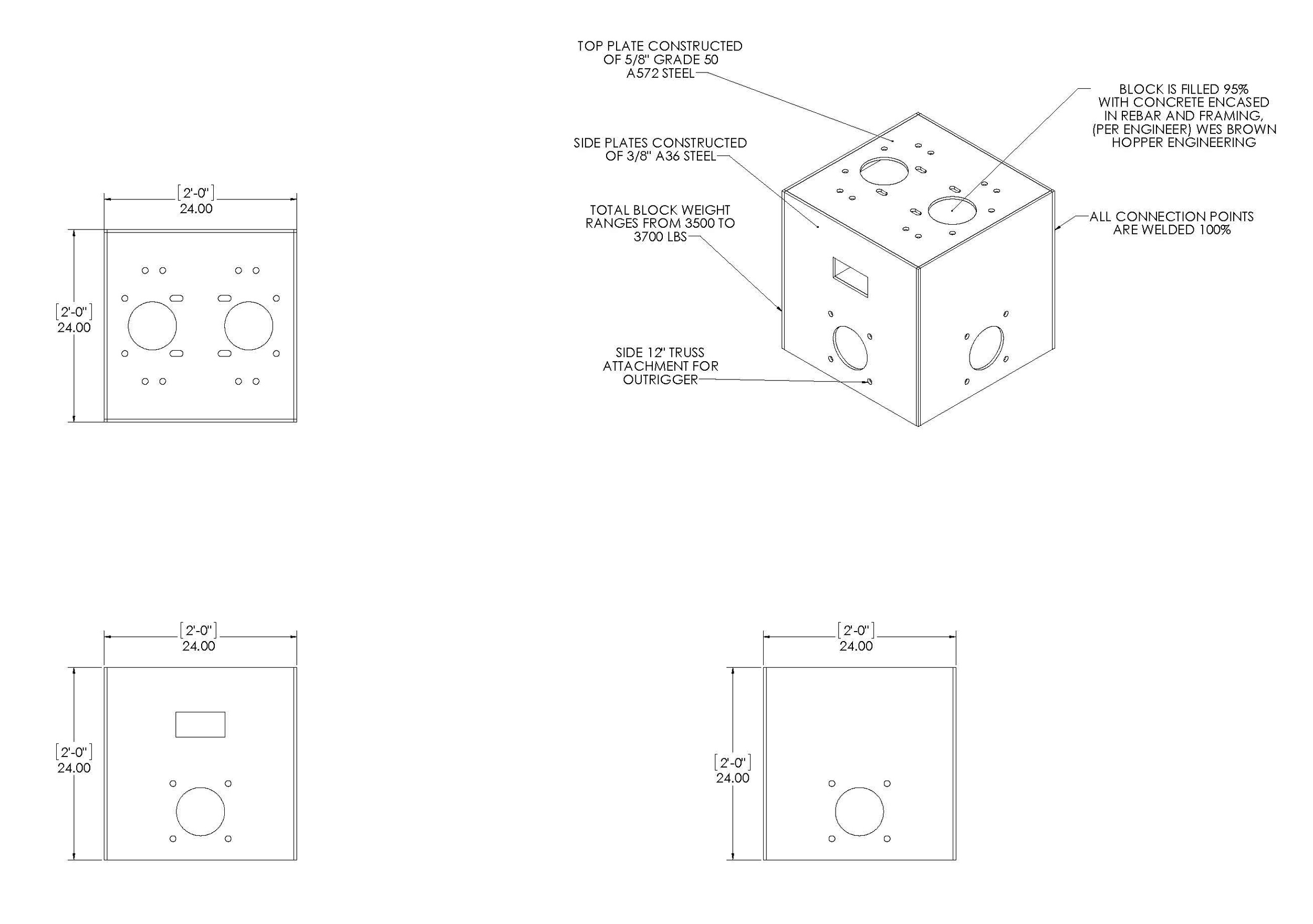

Mini G-Block Overview

Sampling of Configuration

Sampling of Configuration
